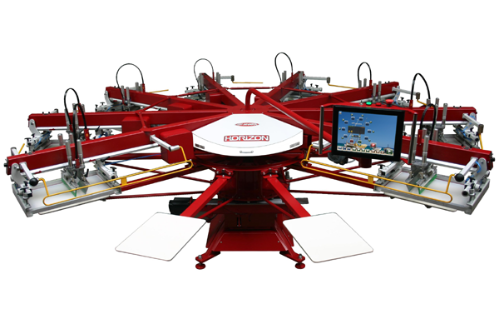

The Horizon automatic printing press has improved capabilities allowing the printer to increase output & efficiency. The Horizon's dependable tubluar steel frame provides constant stability at fast indexing speeds. This combined with a large column with thrust ball bearings allows for effortless cycling.
|
Pneumatic Index/ Pneumatic Heads
|
Servo Index/Pneumatic Heads
|
Servo Index / AC Heads
|
Stations/
Colors
|
Max Image
Size
|
Max Screen Size
|
Standard Pallet Size
|
Diameter
|
Air
|
Electrical
|
Air
|
Electrical
|
Air
|
Electrical
|
| 8/6 |
20" x 21'
|
23" x 33"
|
16" x 22"
|
11'
|
21 SCFM
|
1 Ph,115V, 2A
|
18 SCFM
|
1Ph, 208V, 6A
3Ph, 208V, 4A
|
7 SCFM
|
1Ph, 208V, 14A
3Ph, 208V, 10A
|
| 8/7 |
20" x 21"
|
23" x 33"
|
16" x 22"
|
11"
|
22 SCFM
|
1Ph, 115V, 2A
|
18 SCFM
|
1Ph, 208V, 6A
3Ph, 208V, 4A
|
8 SCFM
|
1Ph, 208V, 17A
3Ph, 208V, 11A
|
| 10/8 |
20" x 21"
|
23" x 33"
|
16" x 22"
|
12' 3"
|
25 SCFM
|
1Ph, 115V, 2A
|
20 SCFM
|
1Ph, 208V, 6A
3Ph, 208V, 4A
|
9 SCFM
|
1Ph, 208V, 22A
3Ph, 208V, 13A
|
10/9
|
20" x 21"
|
23" x 33"
|
16" x 22"
|
12' 3"
|
28 SCFM
|
1Ph, 115V, 2A
|
24 SCFM
|
1Ph, 208V, 6A
3Ph, 208V, 4A
|
10 SCFM
|
1Ph, 208V, 24A
3Ph, 208V, 14A
|
| 12/10 |
20" x 21"
|
23" x 33"
|
16" x 22"
|
13' 9"
|
N/A
|
1Ph, 115V, 2A
|
25 SCFM
|
1Ph, 208V, 6A
3Ph, 208V, 4A
|
10 SCFM
|
1Ph, 208V, 11A
3Ph, 208V, 7A
|

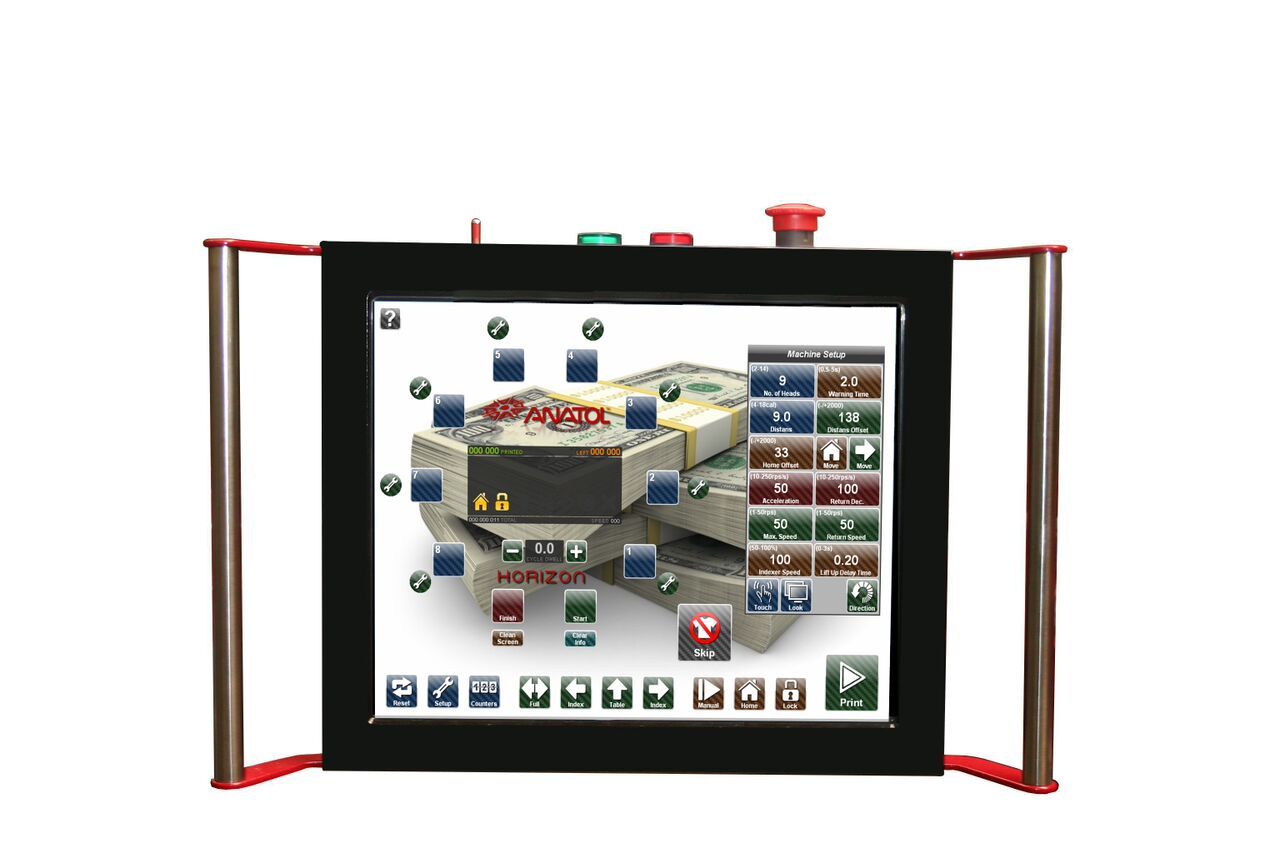

Control Center
- Aries OS - An operating system that is user-friendly, while being the most advanced & dependable O.S. in the industry
- Large
15" Touch Screen allows for one-touch access to all job settings &
machine functions, making set up and recall extremely fast
- Near 360 degree rotating control panel
- Real-time information for daily & total impression-count
- Customizable backgrounds, icons & languages
- Access to operator's manual
- Skip Switch prevents the press from printing on empty pallets
Indexing System
- Pneumatically driven indexer on the 16" x 18", servo indexer on 20" x 21"
- Clock-wise and counter-clockwise indexing available for servo driven machines. Counter-clockwise indexing only with pneumatic model
- Stepback and Multi-stepback programs available on servo-index models
Safety System
The
safety bars are located between each print head and on either side of
the load and unload station, insures employee safety during the set-up
and operation of the press
Pallet System
- Quick Release or Slide-style pallets
- Tool-free locking for either style
- Precise four-point pallet leveling system
- 16" x 22" Solid aluminum, low profile, rubber-coated pallets
- Accepts most common pre-registration systems on the market
Central Off-Contact
- Gauged, click type precisely adjust 0-3/8" range by 0.005"

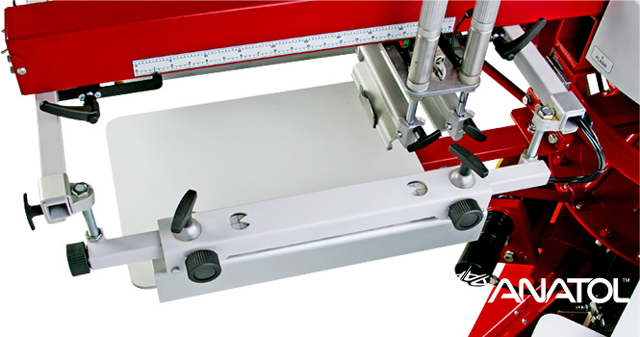

Print Heads
- Pneumatically-driven print heads
- Fully adjustable stroke & flood speed
- Tool-free front & rear stroke length adjustment
- Quick-release system allows for single handed squeegee/flood bar locking
- Squeegee angle adjustments in 5 degree increments up to 30 degrees total
- Precise three-point micro registration system allows complete control when fine tuning image registration
Options
- Servo indexer on 16" x 18"
- A/C motor driven print heads
- Rapid Wave Quartz Flash Cure
- Infrared Panel Shuttle Flash Cure
- Front & rear or side screen holders available
- Pallet locator for slide style mounting pallets
- Pressure Regulator on each pneumatic print head
- Foot pedal control
