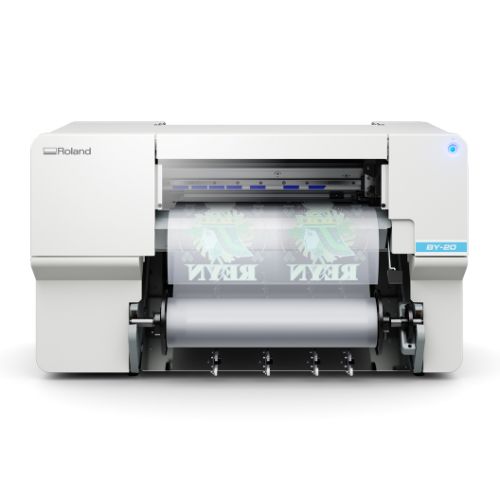

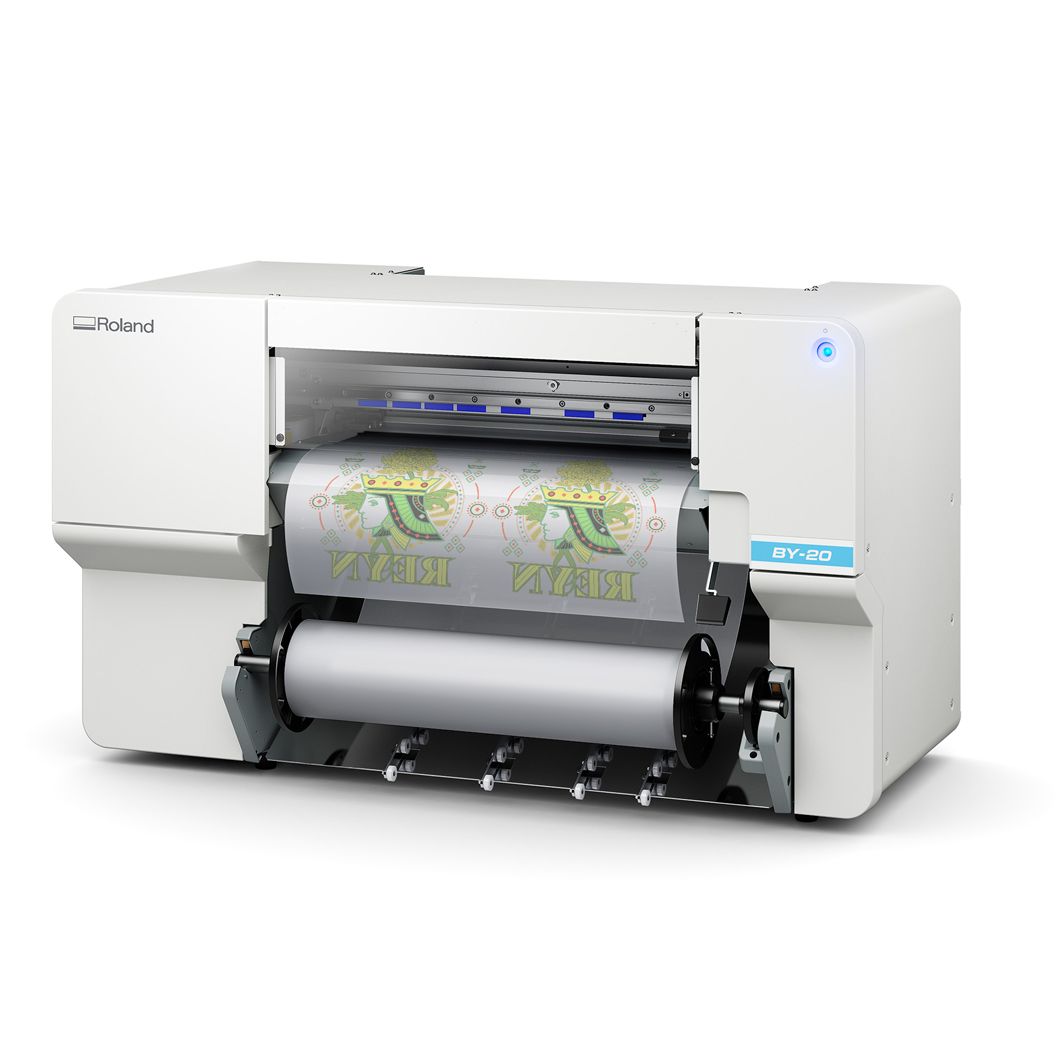

The all-new VersaSTUDIO BY-20 is the ultimate desktop direct-to-film printer…and more. Simple to use, reliable and efficient, the BY-20 makes decorating apparel and accessories with vibrant, detailed graphics quick and easy – even for those with no prior printing experience. Plus, with the BY-20’s integrated contour-cutting functionality, you can also produce heat transfer graphics from PVC sheets – all with a single, affordable compact device.
- Easy-to-use, compact, affordable DTF printer for those who want to start an apparel business, or for existing DTF users seeking to expand their current product offerings
- Prints vibrant, detailed DTF graphics that can be transferred to a wide variety of fabrics with no weeding required
- The only desktop DTF printer with sheet cut and contour-cutting capabilities – can also be used for traditional print and cut applications
- Optimized print modes for improved productivity
- Integrates with popular DTF powder shaker and heater units for an automated system
A Direct-to-Film Printer Tailor Made for You and Your Business
Starter Price The BY-20 is a professional-level printer that's priced to suit the budgets of those just getting started. It comes complete with design and output software, so you can get started printing right out of the box.

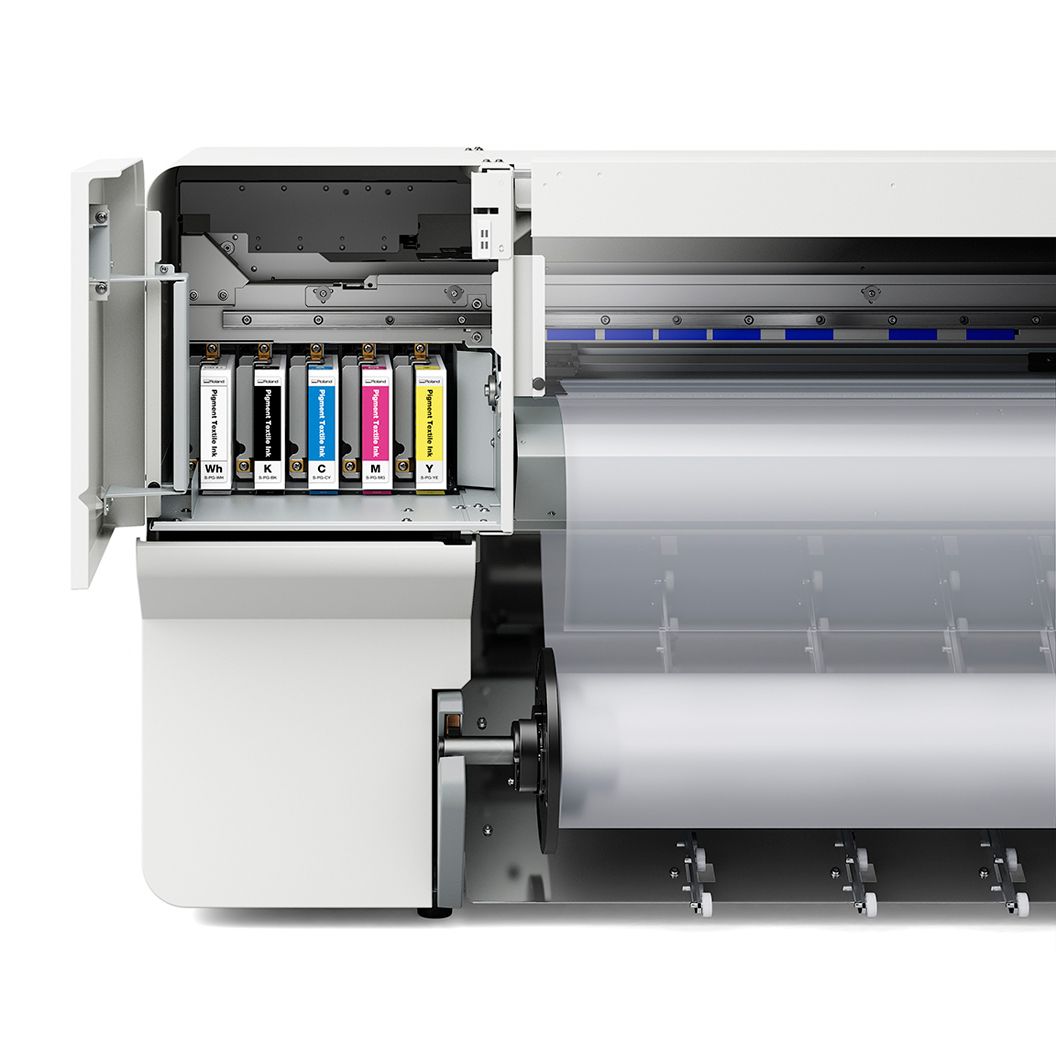

Compact Size Small enough to fit on your desktop - the BY-20 is ideal for your home office or shop. In addition, media setup, ink loading and maintenance can be performed from the front of the printer, further reducing space requirements.
Reliable, Durable, and Easy to Maintain Reliability comes standard with the BY-20, so you can count on smooth, consistent performance. Easy-to-follow instructions and intuitive engineering make periodic maintenance and consumable replacement a breeze.
Create Customized Apparel & Accessories with One Compact, Easy-to-Use Device
The VersaSTUDIO BY-20 is a highly versatile desktop device ideal for a range of direct-to-film apparel applications, such as creating custom T-shirts, sportswear, tote bags, and more. You can also use the BY-20’s integrated contour cutting capabilities to produce jersey numbers and other heat transfer graphics.
Here are some examples:
 | Roland DG’s Industry-Leading Warranty and Support
Every BY-20 also comes with Roland DG’s industry-best customer service and support as well as a One-Year Trouble-Free Warranty. Your success is our success, so you can rest assured we’ll be with you every step of the way to make sure you are fully satisfied with the performance of your Roland DG device. |
| |

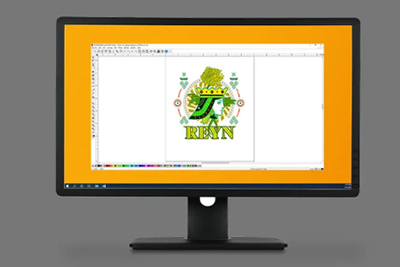

Included FlexiDESIGNER VersaSTUDIO Edition Software
The BY-20’s included FlexiDESIGNER VersaSTUDIO Edition design and output software allows even those with little or no printing experience to consistently produce high-quality graphics. This feature-filled, intuitive software offers a host of tools for creating shapes, text, and effects, while also simplifying the print and cut workflow. |  |

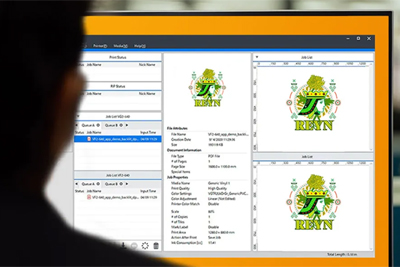

 | Included VersaWorks 6 Output Software
For users looking for even greater control over output settings and capabilities, every BY-20 printer comes with powerful, simple-to-use VersaWorks 6 output software. VersaWorks 6 includes useful features that optimize quality and streamline processes for the printer, ink, and media. It also simplifies the setup of print layouts, generates cut lines for print and cut applications, and provides built-in color management tools that make reproducing specific colors quick and easy. |
Roland DG Connect App For Everything Creative
Gain a detailed understanding of your entire print operation while keeping your device running at optimum performance with a user-friendly app specially designed to integrate seamlessly with your VersaSTUDIO BY-20. Reduce downtime and improve efficiency with a machine monitoring assistant that works in complete harmony with your device. |  |
VersaSTUDIO BY-20 Specifications
| BY-20 |
|---|
| Printing Method | Piezo ink-jet method |
|---|
| Media | Width | 5.91 to 20.2 in. (150 to 515 mm) |
|---|
| Thickness | Maximum 39.3 mil (1.0 mm) with liner, for printing
Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting |
|---|
| Roll outer diameter | Maximum 5.9 in. (150 mm) |
|---|
| Roll weight | Maximum 13.2 lb. (6 kg) |
|---|
| Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) |
|---|
| Printing/cutting width (*1) | Maximum 18.89 in. (480 mm) |
|---|
| Ink | Type | 220-ml cartridge |
|---|
| Colors | Cyan, Magenta, Yellow, Black, White |
|---|
| Printing resolution (dots per inch) | Maximum 1,440 dpi |
|---|
| Cutting speed | 0.39 to 5.9 in/s (10 to 150 mm/s) |
|---|
| Blade force (*2) | 30 to 500 gf |
|---|
| Blade | Type | Roland CAMM-1 series blade |
|---|
| Offset | 0.000 to 1.500 mm (0.0 to 59 mil) |
|---|
| Software resolution (when cutting) | 0.025 mm/step (0.98 mil/step) |
|---|
| Media heating system (*3) | Print heater set temperature: | 86 to 95 °F (30 to 35 °C) |
|---|
| Dryer set temperature: | 86 to 100.4 °F (30 to 38 °C) |
|---|
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) |
|---|
| Power-saving function | Automatic sleep feature |
|---|
| Rated input | 100-240 Va.c. 50/60 Hz 2.1 A |
|---|
| Power consumption | During operation | Approx. 185 W |
|---|
| Sleep mode | Approx. 27W |
|---|
| Acoustic noise level | During operation | 62 dB (A) or less |
|---|
| During standby | 60 dB (A) or less |
|---|
| Dimensions (Width x Depth x Height) | 42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm) |
|---|
| Weight | 137 lb. (62 kg) |
|---|
| Environment | During operation (*4) | Temperature: 68 to 82.4 °F (20 to 28 °C)
Humidity: 40 to 80 % RH (no condensation) |
|---|
| Not operating | Temperature: 41 to 104 °F (5 to 40 °C)
Humidity: 20 to 80 % RH (no condensation) |
|---|
| Included items | Power cord, media holders, replacement blade for separating knife, User's Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc. |
|---|
| *1 | The length of printing or cutting is subject to the limitations of the program.
|
| *2 | - 500 gf is the maximum instantaneous blade force.
- The blade force must be adjusted according to details such as the media thickness.
|
| *3 | Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
Depending on the ambient temperature and media width, the preset temperature may fail to be reached. |
| *4 | Operating environment (Use in an operating environment within this range.) |
|  |
Included:
- Roland VersaSTUDIO BY-20 Printer/Cutter
- OPTIONAL: Full Ink Set including Cyan (C), Magenta (M), Yellow (Y), Black (K) and White (WH)
- Power cord and USB cable
- Blade holder and blade
- Roland VersaWorks RIP software, Windows driver, and utility software (Windows only. download)
- FlexiDesigner VersaStudio Edition software (download)
- Users Manual
- Bottle of cleaning fluid
- Cleaning swabs
