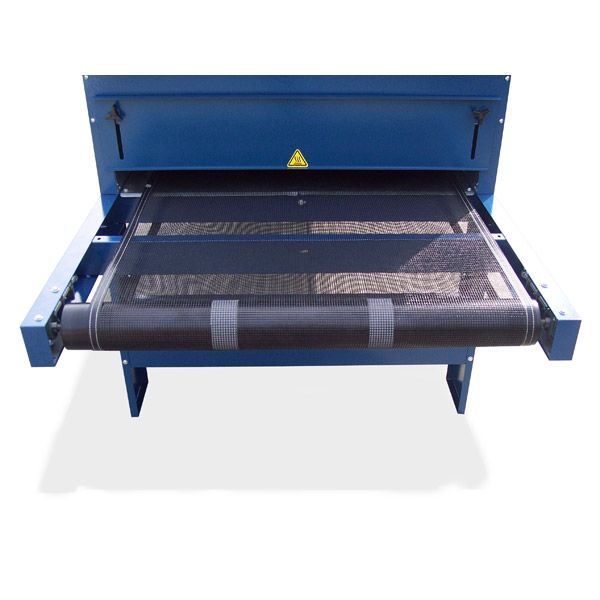

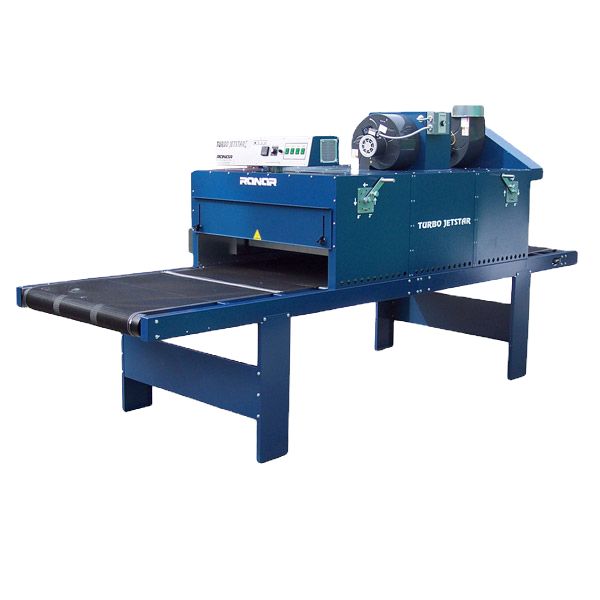

The Ranar Turbo JetStar DT-422 Infrared Conveyor Dryer is a cutting-edge drying solution specifically designed for screen printing, textiles, and various industrial applications. Manufactured in the USA, this unit features a spacious 24-inch by 8 foot conveyor that can efficiently accommodate larger items such as printed fabrics, ensuring a streamlined and effective drying process.
This oven employs advanced infrared heating technology that allows for rapid and uniform drying. The infrared heat is directed at the material, facilitating efficient moisture removal without overheating or damaging the surface. This method not only preserves print integrity but also significantly reduces processing times compared to traditional drying methods.
A significant innovation of the DT-422 is its sophisticated recirculation system. This feature enhances drying efficiency by continuously circulating heated air throughout the drying chamber. By maintaining a consistent temperature and airflow, the recirculation system works in tandem with the infrared heating, ensuring uniform drying across all items on the conveyor.
Temperature and conveyor speed are easily adjustable, allowing operators to tailor the drying process to suit various materials and inks. The user-friendly interface provides clear readings for straightforward monitoring, ensuring consistent output and high-quality results.
Built for durability, the Ranar Turbo JetStar DT-422 is engineered to withstand the demands of high-volume production environments. Its robust construction minimizes wear and tear, ensuring long-lasting reliability and reduced maintenance requirements.
In summary, the Ranar Turbo JetStar DT-422 Infrared Conveyor Oven with Recirculation combines efficiency, reliability, and versatility. Its innovative design makes it an excellent choice for businesses looking to improve their production capabilities, delivering exceptional performance and quality tailored to meet diverse drying needs.
| Energy Efficiency | Utilizes a combination of infrared and convection heating, ensuring quick and efficient drying of various substrates. |
| Rapid Drying | Ensures quick and uniform drying of printed materials, leading to increased production speeds and reduced downtime. |

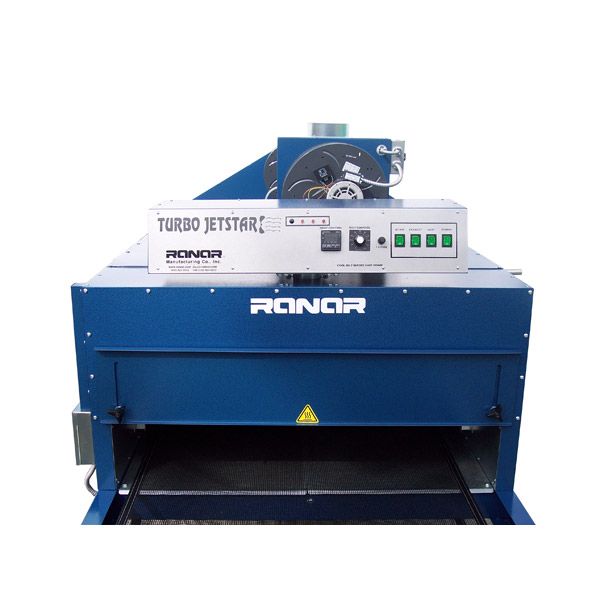

| User-Friendly Control Panel | Equipped with an intuitive digital control interface for easy programming of temperature, time, and conveyor speed. |
| Digital Heat Control | Offers precise heat control to ensure products are processed at the right temperature for optimal results. |
| Adjustable Conveyor Speed | Allows users to customize the speed of the conveyor belt to meet specific production requirements and drying times. |
| Adjustable Heater Height | Allowing not just adjustment of temperature and belt speed but allowing the adjustment of the heat panel from the surface of the material to add extra adjustment capabilities to ensure a proper drying. |
| Wide Temperature Range | Capable of operating at various temperatures suitable for different drying and curing applications. |
| Recirculation System | Includes a power recirculation feature that enhances energy efficiency by redistributing heat more effectively throughout the oven. |
| Exhaust System | Equipped with an integrated exhaust system that helps manage humidity and fumes, ensuring a safe working environment and optimal curing conditions. |
| Optimized Airflow Management | Features strategically placed fans to ensure even heat distribution and improve drying efficiency. |
| Durable Construction | Built with high-quality materials designed for durability and longevity in industrial settings. |
| Compact Footprint | Designed to maximize workspace, making it a suitable option for facilities with limited production space. |
| Versatile Applications | Suitable for a wide range of applications, including screen printing, textiles, adhesives, and more. |
| Easy Maintenance | Designed for easy access to components, simplifying cleaning and maintenance tasks. |
| Customer Support and Warranty | Backed by Ranar's comprehensive warranty and dedicated customer service for troubleshooting and assistance. |
Electric: 220V, 17A
Production: 225 shirts per hour (plastsiol)
60 shirts per hour (water-based)
Belt Size: 24" X 96"
Chamber Length: 48"
Heater Wattage: 4,000 watts
3 years on mechanical parts
2 years for the heat panels
1 year for electrical parts
