The Powerhouse Quartz Conveyor Dryer Series claim to fame is the true understanding of Infrared energy, its emission and how it affects different materials. Quartz technology provides near instant-on capabilities for curing plastisols. With warm up times in seconds and not minutes, it’s no wonder shop owners look to us for higher productivity. The Powerhouse Series’ 180 degree radiant pattern of emission means energy strikes from all angles, unlike standard panel dryers that only omit energy perpendicular to the panel. Simply put, the Quartz technology in the Powerhouse Series provides a more uniform cure; even on shirts that are not perfectly flat.

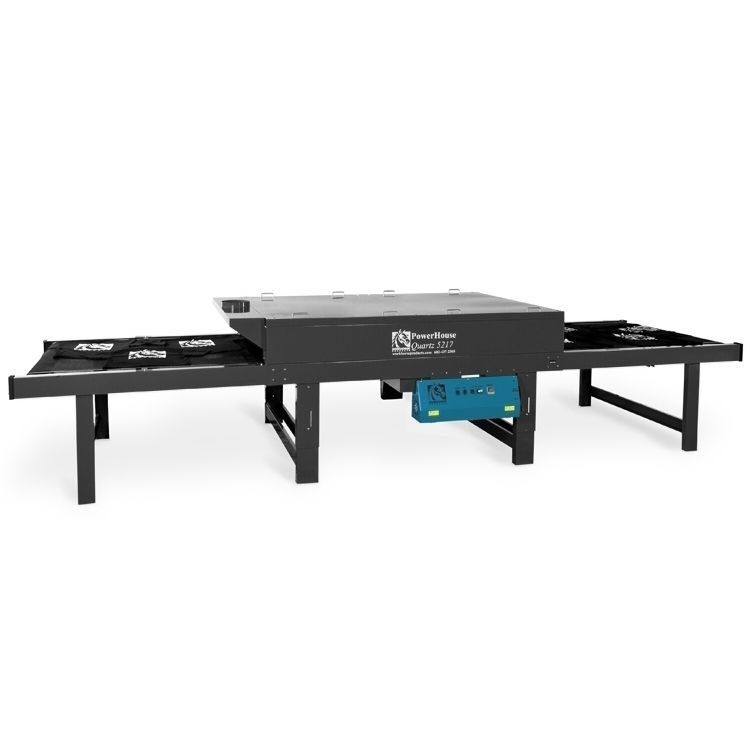

The Powerhouse Quartz Conveyor Dryer PQ-5217comes with a 52" wide belt and 30,600 watts of heating capable of curing 1,000+ pieces*/per hour -plastisol.
*Rated Shirts/hr are approximations and are based on certain conditions including humidity, image size, substrate material, etc.
Electric: 3Ph - 220V; 29A; 50/60Hz
Production: 1,000+ Plastisol Shirts/Hour*
Belt Size: 52" X 17'
Chamber Length: 84"
Infeed/Exit: 60"
Heater Wattage: 30,600 watts
- Adjustable belt speed and oven doors
- Removable oven hood provides easy access for regular cleaning
- 4 point belt tracking makes it easy to setup your dryer and extends belt life
- Optional add-on infeed and outfeed facilitates garment loading and unloading
- Digital control center
- 360 infrared energy emission
- Built in exhaust
- 1 Year Warranty
*Rated Shirts/hr are approximations and are based on certain conditions including humidity, image size, substrate material, etc.
